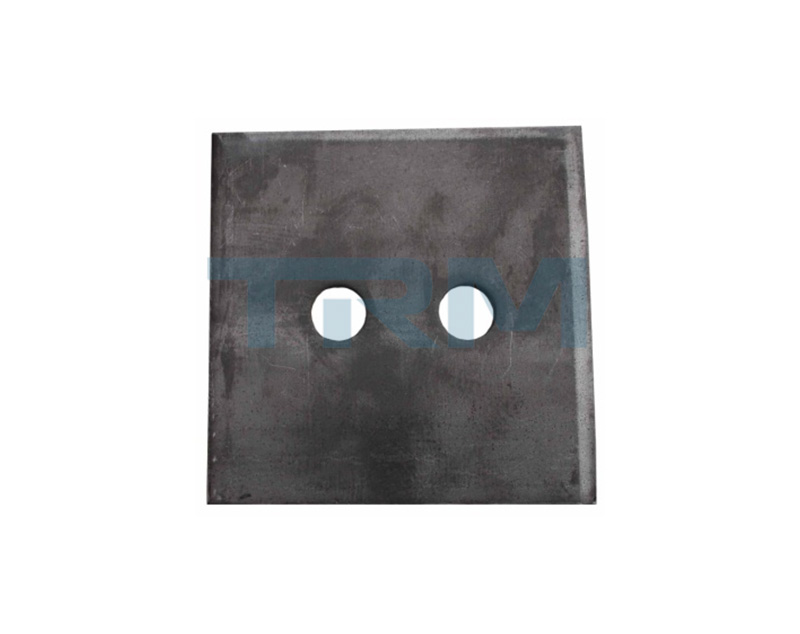

Flat Plate is a kind of general used bearing plate or washers for thread bar bolt and cable bolt in project of underground support.
Additional plate sizes & thinkness (up to 20mm) can be manufactured to individual specifications as required（OEM service offered)
Bent Corner, grout slots & Keyholes available
| TRM Plate Code | Dimension mm | Thickness mm | Hole Dia. mm | Weight
Kgs |
| FP125-6 | 125 x 125 | 6 | 22 | 0.72 |
| FP150-6 | 150 x 150 | 6 | 22 | 1.02 |
| FP150-8 | 150 x 150 | 8 | 22 | 1.38 |
| FP150-10 | 150 x 150 | 10 | 22 | 1.72 |
| FP150-12 | 150 x 150 | 12 | 22 | 2.00 |
| FP200-12 | 200 x 200 | 12 | 22 | 3.60 |
| FP300-12 | 300 x 300 | 12 | 22 | 8.20 |
| FP300-16 | 300 x 300 | 16 | 22 | 11.20 |
| FP400-18 | 400 x 400 | 18 | 22 | 22.50 |
| FP400-20 | 400 x 400 | 20 | 22 | 25.00 |
