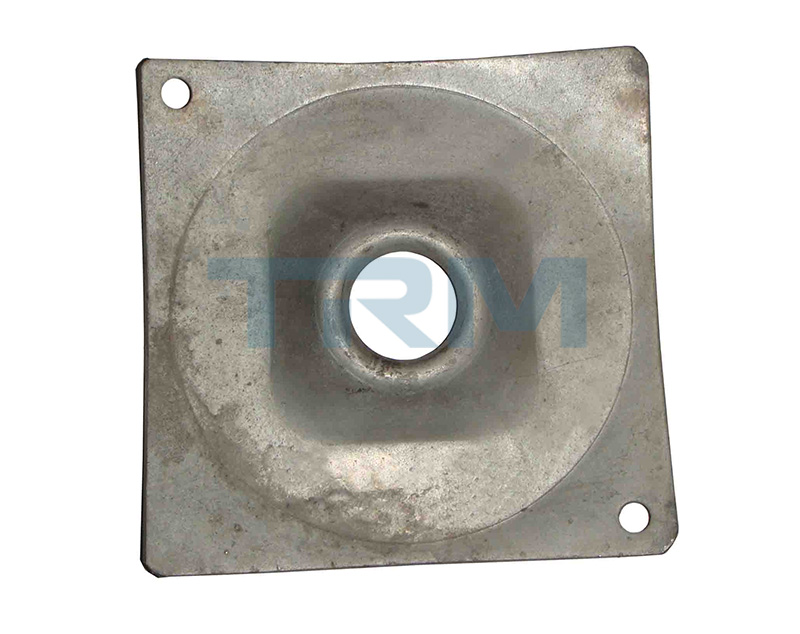

Mesh Plate is a friendly design of plate to fix mesh together with friction bolt and make a whole rock support system after grouting.
TRM Plate Code | Dimension mm | Thickness mm | Hole Dia. mm | Weight (Blk/Galv.) Kgs |
MP200-4B/G | 200 x 200 | 4.0 | 36, 42, 49 | 1.30 / 1.40 |
Used with installation of different stabilizers
With bent up edges so that they do not cut the mesh
Corrosion protection may be provided by hot dip galvanizing
