Friction bolts, also known as split set bolts, are crucial components in ground support systems, particularly in mining, tunneling, and construction projects. Their primary purpose is to stabilize the surrounding ground by providing immediate support after installation. Inspecting friction bolts is essential to ensure the safety and longevity of ground support systems. This article will guide you through the key aspects of friction bolt inspection, ensuring proper functionality and reliability in various ground conditions.
1. Importance of Friction Bolt Inspection
The inspection of friction bolts is necessary to maintain the integrity of ground support systems. Regular inspections help identify any potential issues such as corrosion, wear, or improper installation, which can compromise the stability of the support structure. Ensuring that the bolts are functioning correctly can prevent ground collapses, equipment damage, and serious accidents.

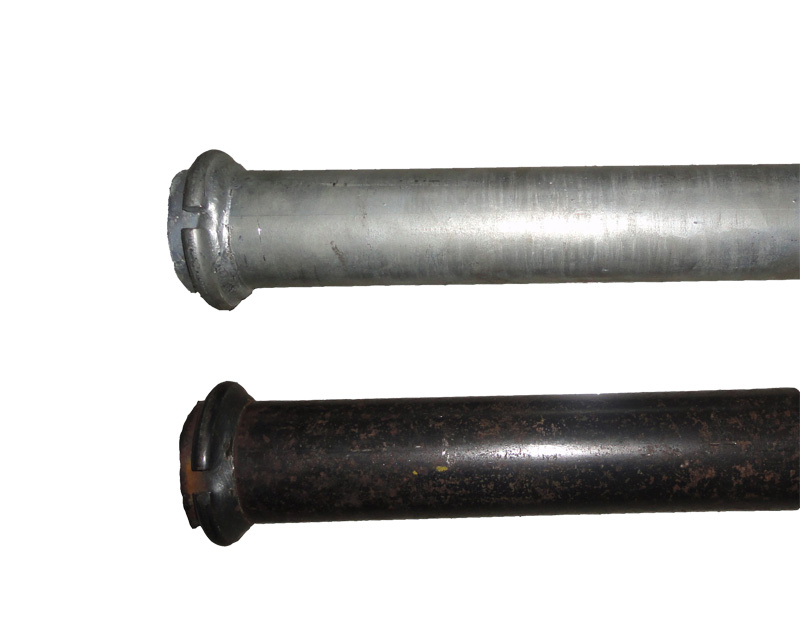

33mm Split Set and Friction Bolt for Ground Support
2. Visual Inspection of Friction Bolts
Visual inspection is the first step in assessing the condition of friction bolts. This involves examining the exposed section of the bolt for signs of corrosion, bending, or damage. It is also important to check for any deformation or wear in the bolt plate or the steel ring, which indicates the bolt is not performing as intended.
Inspectors should also ensure that the bolt has been installed correctly. Friction bolts should be driven tightly into the borehole, with no significant gaps between the bolt and the surrounding rock or ground material.
3. Checking Bolt Tension
After a visual inspection, it's important to verify the tension in the bolt. The tension level directly affects the bolt’s ability to provide adequate support. Over time, friction bolts can lose tension due to ground movement or other external factors. Using a torque wrench or similar tool, check that the bolt maintains the required tension to ensure proper ground stabilization.
4. Corrosion and Environmental Factors
Friction bolts are often exposed to harsh environmental conditions, including moisture, chemicals, and varying temperatures, all of which can accelerate corrosion. During inspection, check for rust or any corrosion that could weaken the bolt’s structural integrity. If corrosion is found, affected bolts should be replaced, and preventive measures such as protective coatings may be considered.

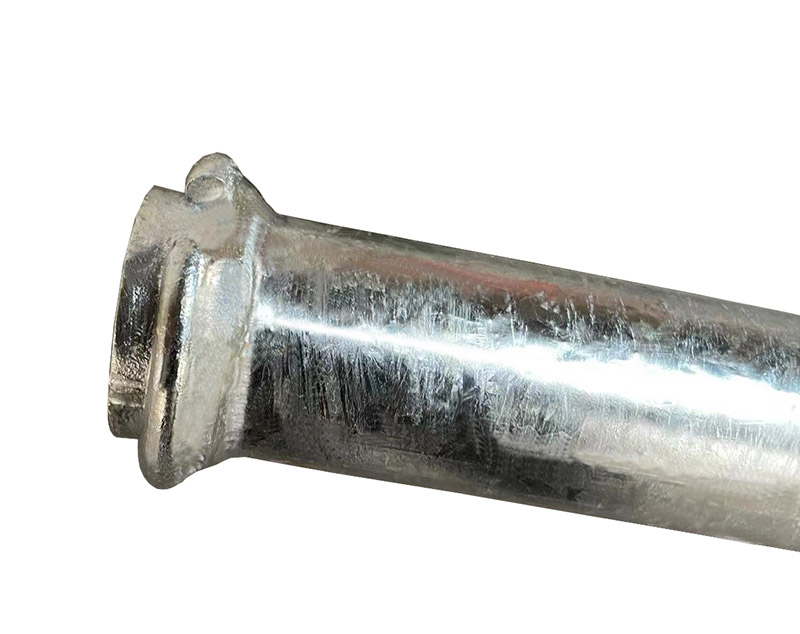

47mm Friction Bolt Split Set Stabilizer
5. Ground Conditions and Bolt Performance
Ground conditions can significantly impact the performance of friction bolts. In softer or fractured rock, bolts may shift or become loose over time. During inspections, evaluate the interaction between the bolt and the surrounding ground. If excessive movement is observed or if the bolt appears to have lost its grip, it may need to be replaced or re-tensioned to restore stability.
6. Frequency of Inspection
The frequency of friction bolt inspection depends on several factors, including the project’s duration, environmental conditions, and the critical nature of the ground support system. In high-risk areas or where ground movement is expected, more frequent inspections are necessary. In general, it’s advisable to inspect friction bolts at regular intervals, such as monthly or after any significant seismic or environmental event.
7. Maintenance and Replacement of Friction Bolts
Regular maintenance of friction bolts is essential to prolong their lifespan and ensure the stability of ground support. Bolts that show signs of wear, corrosion, or loss of tension should be replaced promptly. Additionally, preventive measures such as applying anti-corrosion coatings or installing sacrificial anodes can help protect bolts from environmental damage.
8. Safety Considerations During Inspection
During the inspection of friction bolts, safety is of utmost importance. Inspectors should wear appropriate personal protective equipment (PPE) and follow safety protocols when working in areas where ground instability is a concern. Using proper tools and equipment ensures that the inspection process is conducted efficiently and safely.
Questions and Answers About Friction Bolt Inspection
Q: How often should friction bolts be inspected?
A: The frequency of inspection depends on factors like ground conditions and the criticality of the support system. Regular inspections, such as monthly or after seismic events, are recommended for maintaining stability.
Q: What are the signs that a friction bolt needs replacement?
A: Signs of corrosion, deformation, reduced tension, or loosening of the bolt are indicators that it needs replacement. Visual wear on the bolt plate and the surrounding rock should also be monitored.
Q: Can friction bolts be re-tensioned if they lose grip?
A: In some cases, bolts that have lost grip can be re-tensioned. However, if the bolt shows significant signs of wear or damage, it’s better to replace it to ensure proper support.
Q: How does corrosion affect friction bolts?
A: Corrosion weakens the structural integrity of friction bolts, making them more prone to failure. Preventive measures such as coatings or environmental protection can mitigate corrosion risks.
