Anchor bolts are a cornerstone of tunnel support systems, ensuring the stability and safety of underground structures during and after excavation. Among the various types of anchor bolts, friction bolts and split sets stand out for their effectiveness in reinforcing weak rock formations and stabilizing tunnels in challenging environments. This article explores the role of anchor bolts, with a focus on friction bolts and split sets, in tunnel support systems.
Understanding Anchor Bolts in Tunnel Construction
Anchor bolts are structural elements used to secure rock or soil masses in place, reducing the risk of collapse and ensuring the tunnel’s integrity. These bolts transfer load from unstable rock to stable zones, preventing displacements and controlling ground deformation. Anchor bolts are an essential component of ground control systems, working in conjunction with shotcrete, mesh, or other reinforcement materials.
Friction bolts and split sets, in particular, are commonly used in tunnels for their simplicity, reliability, and adaptability to various geological conditions.

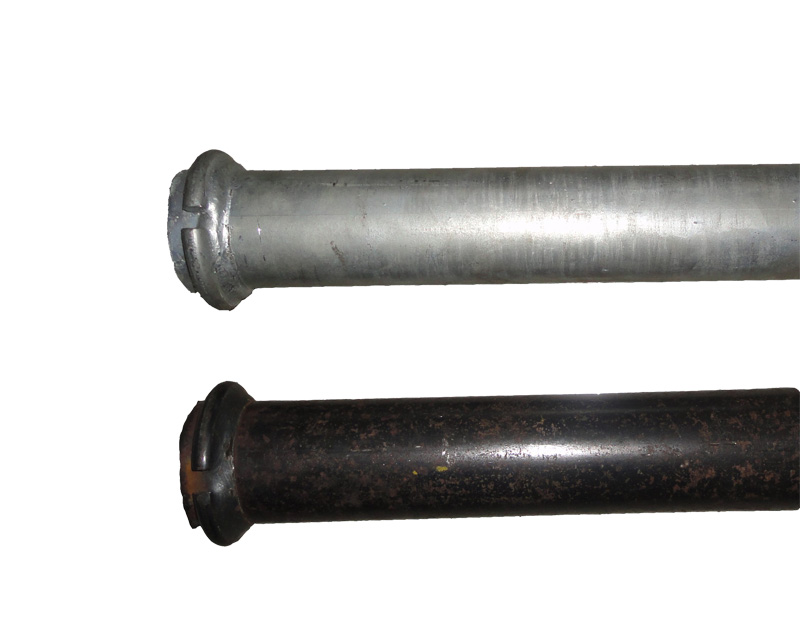

47mm Friction Bolt Split Set Stabilizer
Friction Bolts: A Dynamic Solution for Tunnel Support
Friction bolts are designed to stabilize rock through frictional resistance. These cylindrical steel tubes expand within a drilled hole, creating radial pressure that anchors them securely to the surrounding rock. Friction bolts are particularly effective in dynamic environments where ground movement occurs.
Key Features of Friction Bolts:
1. **Ease of Installation:** Friction bolts require minimal tools and can be installed quickly, making them suitable for time-sensitive projects.
2. **Flexibility:** They adapt to changing ground conditions and provide immediate support after installation.
3. **Durability:** Made from high-strength steel, they withstand high loads and dynamic stresses.
4. **Cost-Effective:** Friction bolts offer a balance of performance and affordability, making them a popular choice in tunneling and mining operations.
Applications of Friction Bolts:
Friction bolts are widely used in tunneling projects, particularly for initial ground support during excavation. Their ability to handle dynamic loads makes them ideal for areas prone to seismic activity or rock movement.
Split Sets: A Reliable and Versatile Option
Split sets, also known as friction stabilizers, are another type of anchor bolt designed to provide continuous ground support. Their slotted design allows them to compress as they are driven into a drilled hole, creating a tight, friction-based contact with the rock surface.
Key Features of Split Sets:
1. **Immediate Support:** Split sets offer instant stabilization, reducing the risk of collapses during excavation.
2. **Strong Load Distribution:** Their design evenly distributes load along the bolt’s length, enhancing overall rock stability.
3. **Adaptability:** They perform well in fractured or loose rock masses, where other anchor systems may struggle.
4. **Durability:** Split sets are designed to resist corrosion and maintain their structural integrity over time.
Applications of Split Sets:
Split sets are frequently used in tunnel construction, mining, and other underground projects. They are ideal for stabilizing weak rock formations and complementing other reinforcement systems like mesh or shotcrete.
The Importance of Anchor Bolts in Tunnel Stability
Anchor bolts, including friction bolts and split sets, are vital for maintaining tunnel stability. Here’s why they are indispensable:
1. Enhancing Safety: Anchor bolts prevent rockfalls and collapses, protecting workers and equipment during excavation and operation.
2. Controlling Deformation: They limit ground movement and deformation, ensuring the tunnel maintains its structural integrity over time.
3. Supporting Load Transfer: Anchor bolts distribute load from weaker zones to more stable regions, preventing stress concentrations.
4. Improving Efficiency: Quick installation of friction bolts and split sets accelerates construction timelines and reduces labor costs.
Factors to Consider When Choosing Anchor Bolts
When selecting anchor bolts for tunnel support, it’s essential to consider:
1. Geological Conditions: Assess rock type, stability, and load requirements to choose the appropriate anchor system.
2. Installation Requirements: Evaluate the tools, equipment, and expertise needed for installation.
3. Longevity: Ensure the anchor bolts can withstand environmental conditions and maintain their performance over the tunnel’s lifespan.
4. Cost-Effectiveness: Balance initial costs with long-term benefits like durability and ease of maintenance.
Conclusion
Anchor bolts, particularly friction bolts and split sets, are integral to tunnel support systems. Their ability to stabilize weak rock formations, control ground deformation, and enhance safety makes them a reliable choice for various tunneling projects. By understanding their roles and applications, engineers can optimize tunnel construction processes and ensure structural stability for years to come.
