A friction bolt, often referred to as a split-set or a friction rock bolt, is a crucial component in rock reinforcement and ground support systems used extensively in mining, tunneling, and civil engineering projects. It plays a significant role in stabilizing rock masses by transferring load from unstable ground to more competent rock layers, thereby enhancing safety and enabling excavations in challenging geological conditions. Among the various configurations of friction bolts, the duo plate design stands out for its unique characteristics and applications.
Understanding Friction Bolts
Friction bolts are mechanical anchors designed to provide reinforcement in rock formations where traditional rock bolts might not be suitable or feasible. They consist of a cylindrical steel tube with longitudinal slots along its length, which enables it to expand and grip the surrounding rock when inserted into a pre-drilled hole. This mechanism relies on friction between the bolt and the rock surfaces to achieve load transfer and stabilization.

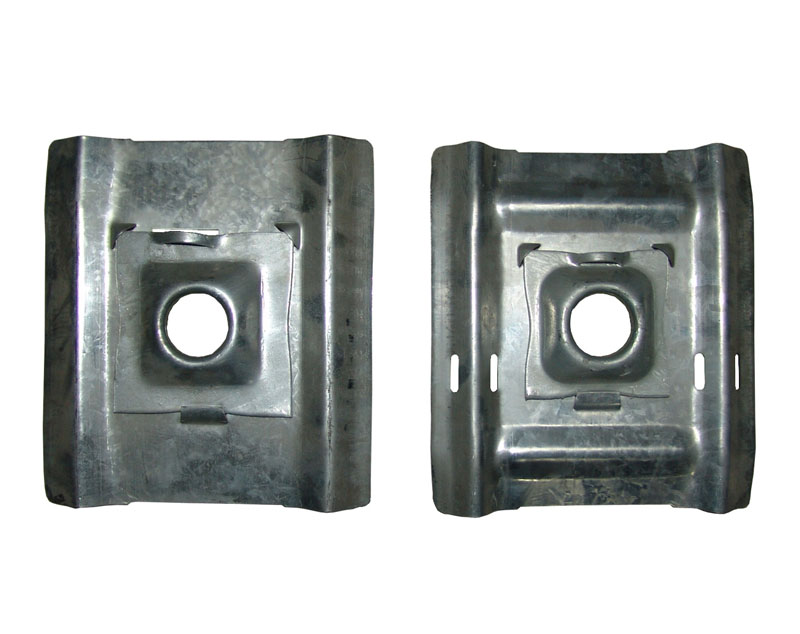

Duo Plate of Friction Bolt and Split Set
Components of a Duo Plate Friction Bolt
The duo plate friction bolt is a specialized variant that includes additional components to enhance its anchoring capabilities and structural integrity:
Main Bolt Body: This forms the central part of the friction bolt and typically consists of a high-strength steel tube with longitudinal slits. The diameter and length of the bolt vary depending on the specific application and the geological conditions.
Duo Plates: These are flat metal plates attached to the outer surface of the main bolt body. The duo plates serve several key purposes:
Enhanced Contact Area: By increasing the surface area in contact with the rock, duo plates improve the load-bearing capacity of the bolt. This is crucial in unstable or fractured rock where a larger contact area distributes forces more effectively.
Stabilization: Duo plates help to prevent the bolt from rotating or dislodging once it is installed. This stability is essential for maintaining the integrity of the ground support system over time.
Reinforcement: They contribute to the overall tensile and shear strength of the friction bolt assembly, ensuring reliable performance under varying stress conditions.
End Fittings: At both ends of the bolt, there are specialized fittings that facilitate installation and anchorage. These fittings can include tapered cones, hex nuts, or other configurations depending on the manufacturer and specific design requirements.
Installation Process
The installation of a duo plate friction bolt follows a systematic procedure to ensure effective ground support:
Drilling: A hole of appropriate diameter and depth is drilled into the rock mass using pneumatic or hydraulic drilling equipment.
Insertion: The friction bolt, typically pre-assembled with the duo plates and end fittings, is inserted into the drilled hole. The bolt is then expanded using an installation tool that applies radial force to force the bolt against the rock walls.
Expansion and Gripping: As the bolt expands within the hole, the duo plates press against the rock surfaces, creating frictional resistance. This frictional grip ensures that the bolt remains firmly anchored even under dynamic loading conditions.
Tensioning: Once the bolt is fully expanded and anchored, it may be tensioned to a specified load to maximize its load-bearing capacity and to optimize ground support effectiveness.
Applications and Advantages
Duo plate friction bolts find wide-ranging applications in underground mining, tunneling, and civil engineering projects where ground stabilization is critical. Some key advantages include:
Versatility: Suitable for a variety of geological conditions, including weak or fractured rock formations.
Ease of Installation: Relatively straightforward installation process compared to other ground support methods.
Cost-effectiveness: Provides robust support at a competitive cost, making it economically viable for large-scale projects.
Durability: Designed to withstand long-term environmental and mechanical stresses without significant degradation.
Conclusion
In conclusion, the duo plate friction bolt represents an advanced and effective solution for ground reinforcement in challenging rock conditions. By incorporating duo plates into the standard friction bolt design, engineers enhance both the structural integrity and load-bearing capacity of the system, thereby improving safety and operational efficiency in underground and civil engineering applications. Its versatility, ease of installation, and durability make it a preferred choice where reliable ground support is paramount.
