A friction anchor bolt is a type of mechanical anchor used primarily in mining, tunneling, and rock reinforcement applications. Unlike traditional anchors, which rely on mechanical expansion or chemical adhesives to secure themselves in place, friction anchor bolts work by creating friction between the bolt and the surrounding material (such as rock or concrete) to provide stability and support.
Friction anchor bolts are designed to be inserted into drilled holes, and their primary function is to provide reinforcement by resisting shear forces and holding the material in place. They are widely used in underground mining, slope stabilization, and civil engineering projects where rock reinforcement is necessary. Here’s an in-depth look at the characteristics, uses, and advantages of friction anchor bolts.
1. How Friction Anchor Bolts Work
The fundamental principle behind a friction anchor bolt is friction. The bolt exerts radial pressure on the sides of the drilled hole, which creates a frictional force that resists movement. This force holds the bolt in place and provides stability to the surrounding material.
- Installation: The installation process involves drilling a hole into the rock or concrete, then inserting the friction anchor bolt. As the bolt is driven into the hole, it expands slightly, pressing against the sides of the hole and creating friction.
- Radial Pressure: The bolt's design, typically a tube or split steel rod, allows it to expand and exert radial pressure against the drilled hole. This expansion provides the necessary friction to keep the bolt securely in place.
- Immediate Support: Friction anchor bolts provide immediate support upon installation, making them particularly useful in situations where time is critical, such as in underground mining or construction sites where continuous reinforcement is needed.

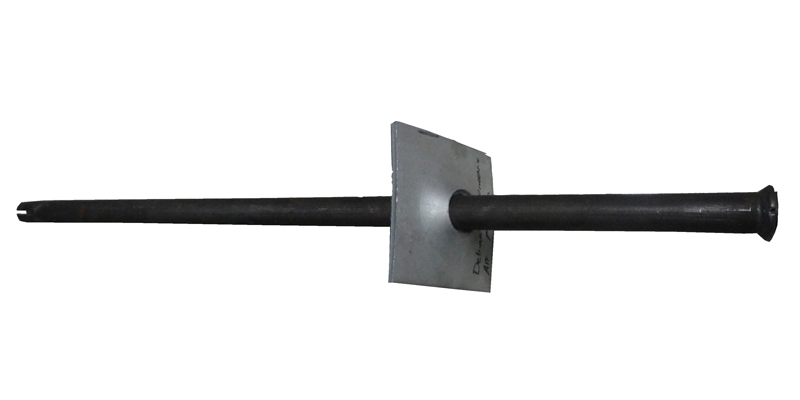

Friction Bolt and Split Set Mesh Bolt
2. Types of Friction Anchor Bolts
There are various types of friction anchor bolts, with some of the most common including:
- Split Set Bolts (Friction Stabilizers): These are one of the most commonly used types of friction bolts, consisting of a long, split steel tube that is driven into a pre-drilled hole. As the tube is forced into the hole, it expands and presses against the sides of the hole, creating friction and holding the rock in place. Split set bolts are commonly used in mining and tunneling.
- Swellex Bolts: Another popular type of friction anchor bolt, Swellex bolts are tubular steel bolts that expand when high-pressure water is pumped into them after installation. The expansion creates friction between the bolt and the surrounding rock, providing reinforcement. Swellex bolts are known for their flexibility and ability to conform to irregularly shaped holes.
3. Applications of Friction Anchor Bolts
Friction anchor bolts are versatile and used in various applications where reinforcement is necessary:
- Mining: In underground mining operations, friction anchor bolts are used to stabilize tunnels and shafts, preventing rockfalls and collapses. They provide immediate reinforcement, which is crucial for maintaining safety in mining environments.
- Tunneling: Friction anchor bolts are used in tunneling projects to support the tunnel walls and ceilings. Their ability to provide quick and effective reinforcement makes them ideal for tunnel construction in different types of rock formations.
- Slope Stabilization: Friction anchor bolts are used to stabilize slopes and prevent landslides. By reinforcing the rock or soil, they help ensure the stability of slopes, particularly in construction and infrastructure projects.
- Civil Engineering: Friction anchor bolts are also used in various civil engineering projects, such as dam construction, roadways, and bridges, where reinforcement of rock or concrete structures is necessary.
4. Advantages of Friction Anchor Bolts
Friction anchor bolts offer several advantages over other types of anchors:
- Immediate Load-Bearing Capacity: One of the most significant advantages of friction anchor bolts is their ability to provide immediate support after installation. This makes them ideal for projects where time is critical, such as in mining or tunneling operations.
- Simplicity of Installation: Friction anchor bolts are relatively easy to install, requiring only a drilled hole and a driving force to insert the bolt. This simplicity reduces installation time and labor costs.
- Flexibility: Friction anchor bolts can adapt to different rock conditions, making them versatile in a wide range of applications. Their ability to conform to irregularly shaped holes further enhances their effectiveness.
- Cost-Effectiveness: Since friction anchor bolts do not require complex installation procedures or expensive adhesives, they are a cost-effective solution for rock reinforcement.
5. Limitations of Friction Anchor Bolts
While friction anchor bolts have many benefits, they also have some limitations:
- Dependence on Rock Quality: The effectiveness of a friction anchor bolt depends on the quality of the surrounding rock. In weak or fractured rock, the friction generated by the bolt may not be sufficient to provide adequate reinforcement.
- Limited Tensile Strength: Friction anchor bolts primarily rely on radial pressure and friction, so they may not provide as much tensile strength as other types of anchors, such as mechanical expansion bolts or resin anchors.
- Not Suitable for All Conditions: Friction anchor bolts may not be suitable for all types of materials or environments, particularly those where the rock or concrete is highly unstable or prone to significant movement.
Conclusion
Friction anchor bolts are an essential tool for rock reinforcement in mining, tunneling, and other civil engineering applications. Their ability to provide immediate support, ease of installation, and cost-effectiveness make them a popular choice for projects that require reliable and efficient reinforcement. However, their effectiveness depends on the quality of the surrounding material, so careful consideration should be given to the conditions in which they are used.
